Main Parameter:This CA series high accuracy roundness cylindricity measuring instrument delivers ±0.0125μm accuracy and its rotary table with auto-centering and auto-leveling functions.
Roundness Cylindricity Measuring Machine
Roundness & Cylindricity Measurement Machine
Ultra-high precision auto centering auto leveling roundness measuring system
Roundness Measuring Instrument
MAIN FUNCTIONS

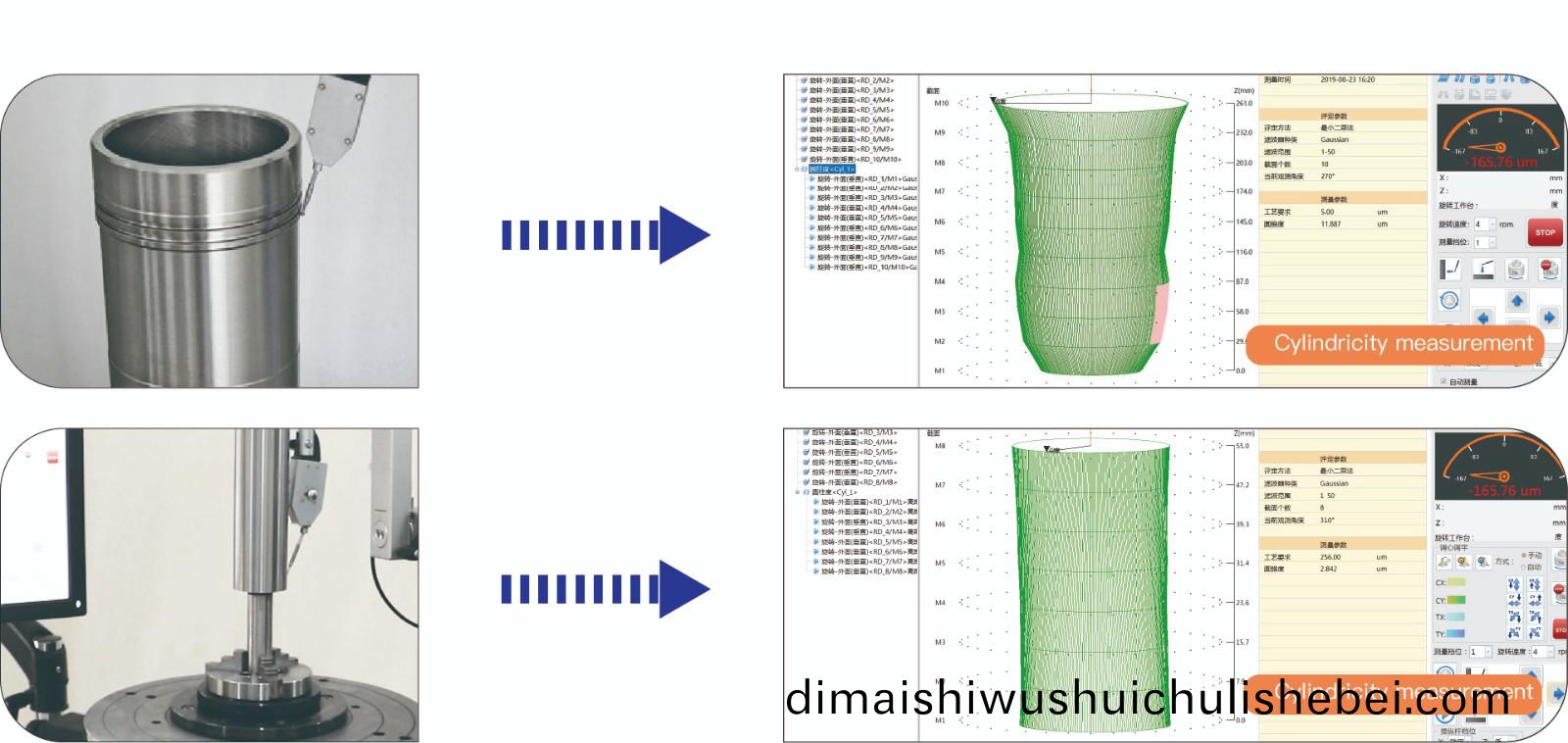

Measurement of roundness, cylindricity, straightness, runout, full runout, taper, diameter, concentricity, coaxiality, flatness, parallelism, perpendicularity, eccentricity, etc. of various regular and irregular ring-shaped workpieces
Analysis of surface waviness (Wc, Wp, Wv, Wt, Wa, Wq), spectrum analysis, wave height analysis
Roundness evaluation method: minimum area method, least squares method, minimum external circle method, maximum internal tangent circle method
Roundness filtering method: 1-500, 1-150, 1-50, 1-15
Waviness: 3-16, 3-17, 15-500, 17-100
TECHNICAL FEATURES
● Accuracy: Adopt high precision rotary aerostatic bearing structure, the accuracy is up to ±0.0125μm.
● Lifespan: The spindle adopts air floating structure, which never wears out and keeps the accuracy for a long time, and the instrument has a long lifespan.
● Data acquisition adopts imported precision circular grating, which collects 14,400 points per week with high accuracy and stability.
● Appearance: One-piece structure, beautiful and elegant.
● CA measurement software based on WINDOWS system, with intuitive and friendly interface, easy operation and rich measurement functions.
● Automatic recognition of contour interruption, automatic rejection of notch, abnormal point function.
● Partial arc measurement roundness function.
● Powerful analysis function, such as taper, diameter, ripple degree, wave height and spectrum analysis, etc.
● SPC statistical analysis: statistical analysis of a large number of measurement data and graphic analysis report.
● The measurement parameters can be set to judge the process requirements to improve the observability of quality control.
● Single or multiple measurement data can be printed on the same page.
● Different sizes of ruby styli can be selected at will.
● High quality and reliable industrial control computer is adopted.
Standard Models?
Item/Model | CNC-35 | CNC-65 | CNC95 | |
Measuring range | Parts max turning diameter | φ320mm | φ420mm | φ420mm |
Max measuring height | 300mm | 400mm | 500mm | |
Max measuring depth | Standard probe:100mm(aperture<36mm) ? Non-standard bracket can measure up to 300mm(aperture>36mm) | |||
Max load | 25Kg | 50Kg | 100Kg | |
Air float spindle | Axial error | ±(0.025+0.0005H) μm※ | ±(0.015+0.0003H) μm | ±(0.0125+0.0003H) μm |
Radial error | ±(0.025+0.0006X) μm※ | ±(0.0125+0.0004X) μm | ±(0.02+0.0004X) μm | |
Worktable | Table diameter | φ150mm | φ200mm | φ200mm |
Adjust range | Centering ±3mm, Leveling ±1° | |||
Straightness | 0.5μm/100mm | 0.4μm/100mm | ||
Parallelism between rotation axis and Z-axis guide | 1.5μm/300mm | 2μm/400mm | 2.5μm/500mm | |
Horizontal travel | 250mm | 270mm | ||
Sensor | Measuring range | 500μm?(Radius differential) | ||
Stylus | φ2mm ruby probe(φ1mm, φ0.5mm stylus available ) | |||
※?H: measuring height from table.???X: measuring radius.
All the above data are default configuration for standard models. Customized or OEM is available upon specific request.
